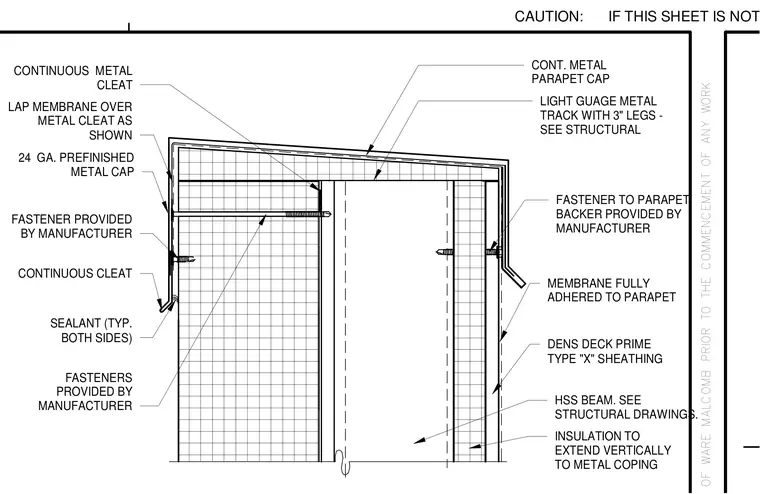

A twenty-four gauge prefinished metal cap covers the top of the parapet and laps over a continuous metal cleat fastened to the parapet backer. The waterproofing membrane is fully adhered to the parapet and laps over the metal cleat as shown. A light-gauge metal track with three-inch legs ties into the assembly at the top of the wall per structural drawings. Dens Deck Prime type X sheathing provides the exterior substrate, backed by vertical insulation extending to the metal coping. Sealant is applied typically on both sides at the metal cap interface.
HSS BEAM. SEE STRUCTURAL DRAWINGS. MEMBRANE FULLY ADHERED TO PARAPET FASTENERS PROVIDED BY MANUFACTURER CONTINUOUS CLEAT FASTENER PROVIDED BY MANUFACTURER 24 GA. PREFINISHED METAL CAP LAP MEMBRANE OVER METAL CLEAT AS SHOWN CONTINUOUS METAL CLEAT FASTENER TO PARAPET BACKER PROVIDED BY MANUFACTURER SEALANT (TYP. BOTH SIDES) DENS DECK PRIME TYPE "X" SHEATHING LIGHT GUAGE METAL TRACK WITH 3" LEGS - SEE STRUCTURAL CONT. METAL PARAPET CAP INSULATION TO EXTEND VERTICALLY TO METAL COPING CAUTION: IF THIS SHEET IS NOT 30"x42" IT IS A REDUCED
