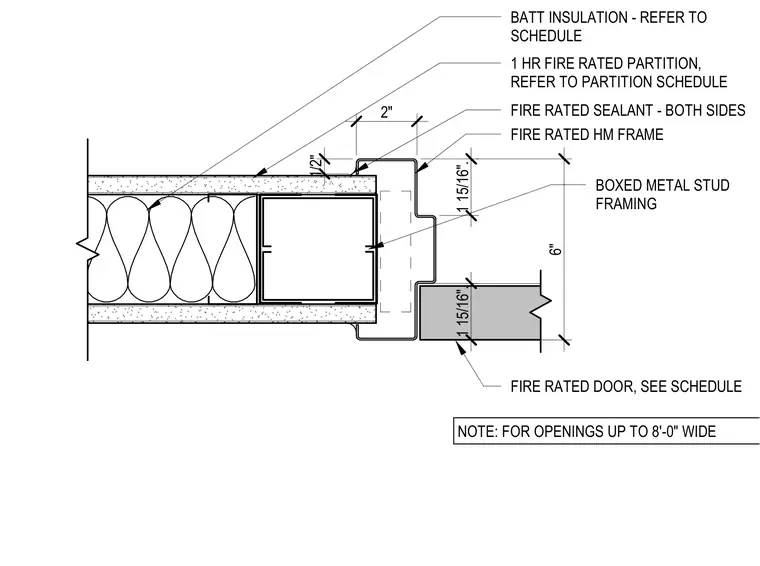

A fire-rated hollow metal frame anchors into boxed metal stud framing within a one-hour fire-rated partition. Batt insulation fills the stud cavity behind the gypsum board layers. Fire-rated sealant is applied to both sides at the interface between the metal frame and the wall finish. A fire-rated door is hung within the frame, suitable for openings up to eight feet wide.
BATT INSULATION - REFER TO SCHEDULE 1 HR FIRE RATED PARTITION, REFER TO PARTITION SCHEDULE BOXED METAL STUD FRAMING FIRE RATED SEALANT - BOTH SIDES FIRE RATED HM FRAME FIRE RATED DOOR, SEE SCHEDULE NOTE: FOR OPENINGS UP TO 8'-0" WIDE 6" 2" 1/2" 1 15/16". 1 15/16".
