An access door is integrated into a suspended gypsum board ceiling framing system using manufacturer-provided frames and clips attached to support channels. Each corner of the opening features a vertical 12-gauge wire attachment with a minimum of four tight turns. Two 12-gauge splay wires are located at diagonally opposite corners for additional stabilization. A metal casing bead finishes the gypsum board edge around the access panel, which includes a hinge and latch.

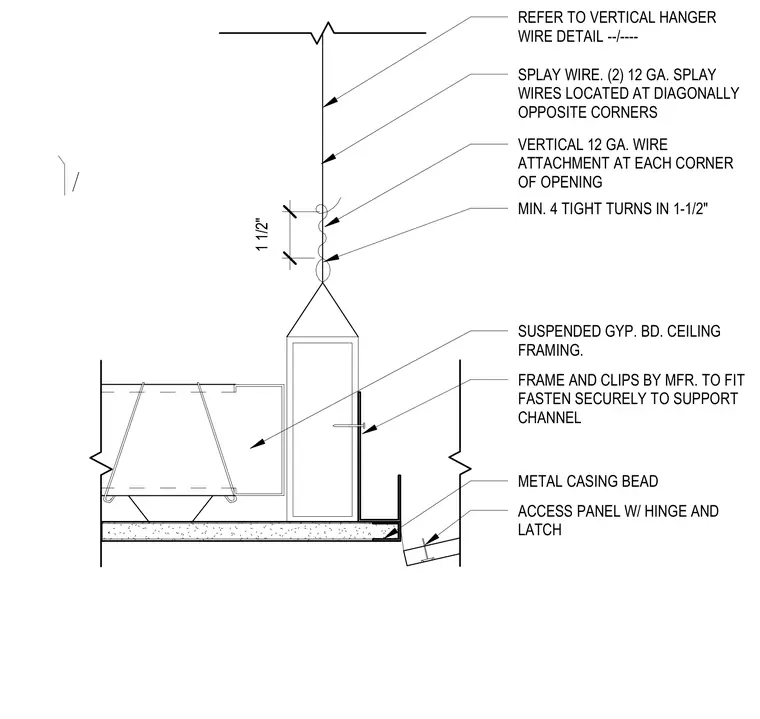

1 1/2" REFER TO VERTICAL HANGER WIRE DETAIL --/---- SPLAY WIRE. (2) 12 GA. SPLAY WIRES LOCATED AT DIAGONALLY OPPOSITE CORNERS VERTICAL 12 GA. WIRE ATTACHMENT AT EACH CORNER OF OPENING MIN. 4 TIGHT TURNS IN 1-1/2" SUSPENDED GYP. BD. CEILING FRAMING. FRAME AND CLIPS BY MFR. TO FIT FASTEN SECURELY TO SUPPORT CHANNEL METAL CASING BEAD ACCESS PANEL W/ HINGE AND LATCH
