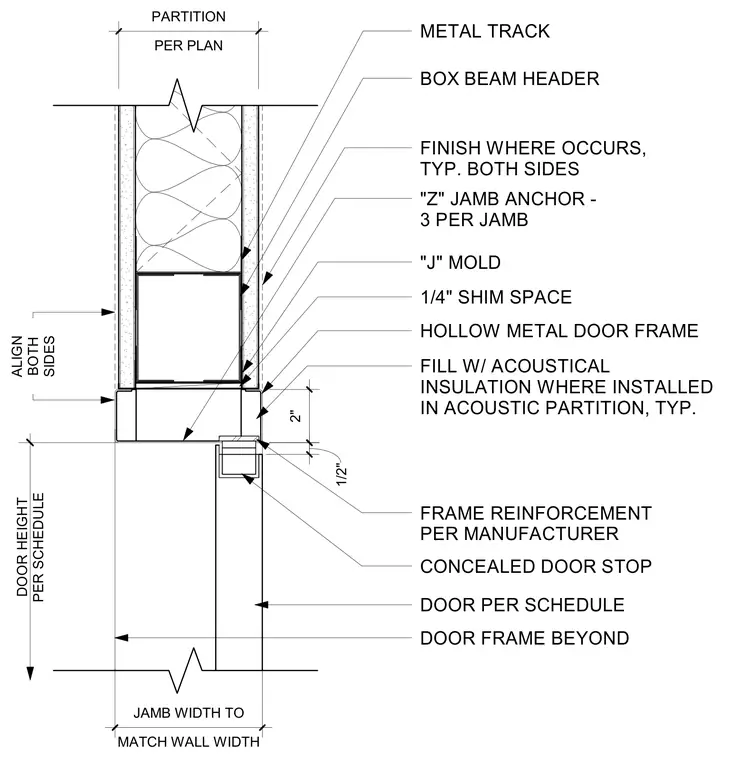

A hollow metal door frame is set within a metal stud partition framing assembly featuring a metal track and a box beam header. Three Z-jamb anchors secure each jamb with a one-quarter-inch shim space. The frame incorporates a J-mold and a two-inch frame reinforcement per the manufacturer with a concealed door stop. Acoustical insulation fills the hollow metal door frame where installed in an acoustic partition. Finish materials apply to both sides of the partition matching the door height per schedule and wall width.
PER PLAN PARTITION MATCH WALL WIDTH JAMB WIDTH TO DOOR HEIGHT PER SCHEDULE METAL TRACK BOX BEAM HEADER FINISH WHERE OCCURS, TYP. BOTH SIDES "Z" JAMB ANCHOR - 3 PER JAMB HOLLOW METAL DOOR FRAME FILL W/ ACOUSTICAL INSULATION WHERE INSTALLED IN ACOUSTIC PARTITION, TYP. DOOR PER SCHEDULE DOOR FRAME BEYOND CONCEALED DOOR STOP ALIGN BOTH SIDES "J" MOLD 2" FRAME REINFORCEMENT PER MANUFACTURER 1/2" 1/4" SHIM SPACE
