Text on the drawing

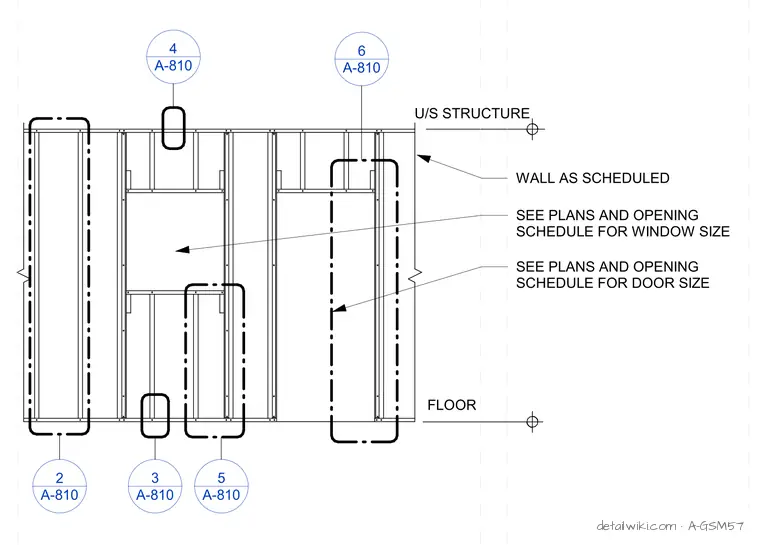

U/S STRUCTURE WALL AS SCHEDULED FLOOR SEE PLANS AND OPENING SCHEDULE FOR WINDOW SIZE SEE PLANS AND OPENING SCHEDULE FOR DOOR SIZE A-810 2 A-810 3 A-810 5 A-810 6 A-810 4
