A-GSE6A — Floor Penetration Detail

Architectural · A-GSE6A

Floor Penetration Detail

Units: imperial
Sheet: RA-M5.0.1
Discipline: Architectural

Materials

Elements

Anchors / Embeds Floors / Slabs Insulation Roof / Floor Openings Stairs

Text on the drawing

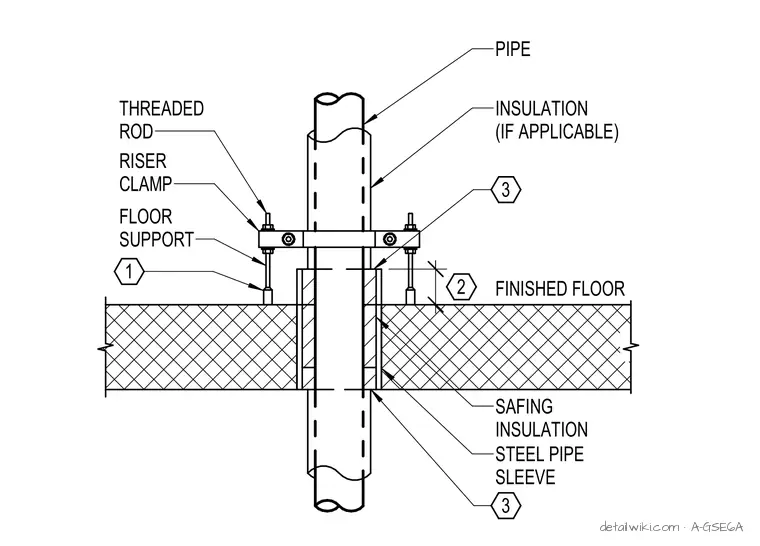

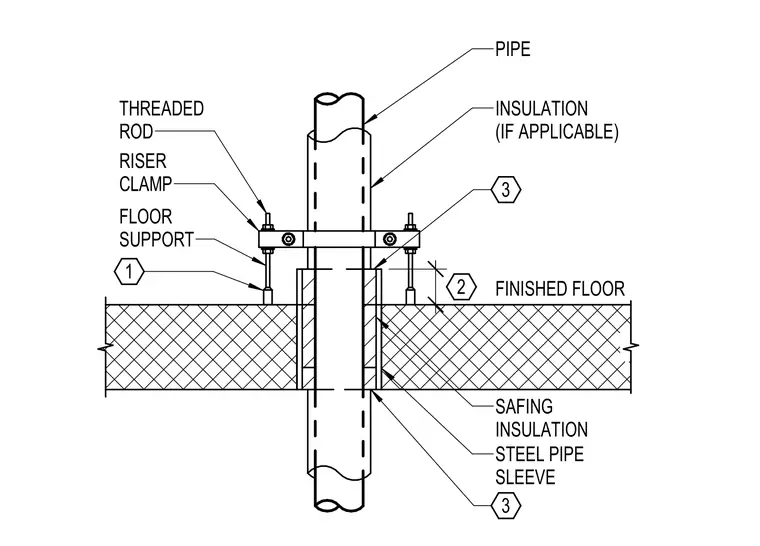

FINISHED FLOOR RISER CLAMP THREADED ROD PIPE INSULATION (IF APPLICABLE) SAFING INSULATION STEEL PIPE SLEEVE 3 2 3 FLOOR SUPPORT 1
