Architectural · A-GSD2G

Concrete Planter Wall

Materials

Elements

Walls Foundations / Footings Waterproofing / Flashing Drainage Site / Paving Reinforcing

About this detail

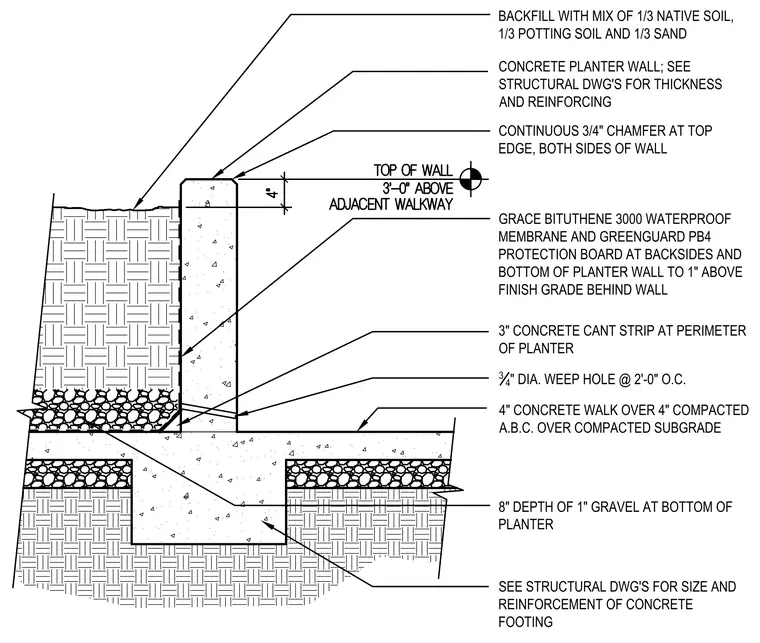

A reinforced concrete planter wall extends three feet above the adjacent concrete walk, featuring a continuous three-quarter-inch chamfer at both top edges. The backside and bottom of the wall are protected with Grace Bituthene 3000 waterproof membrane and Greenguard PB4 protection board extending to one inch above finish grade. Drainage is managed by three-quarter-inch diameter weep holes spaced at two feet on center, backed by an eight-inch depth of one-inch gravel and a three-inch concrete cant strip at the perimeter. The planter interior is filled with a soil mix consisting of one-third native soil, one-third potting soil, and one-third sand over compacted subgrade. The concrete footing and walkway structure are sized per structural drawings, with the walkway constructed over four inches of compacted aggregate base course.
