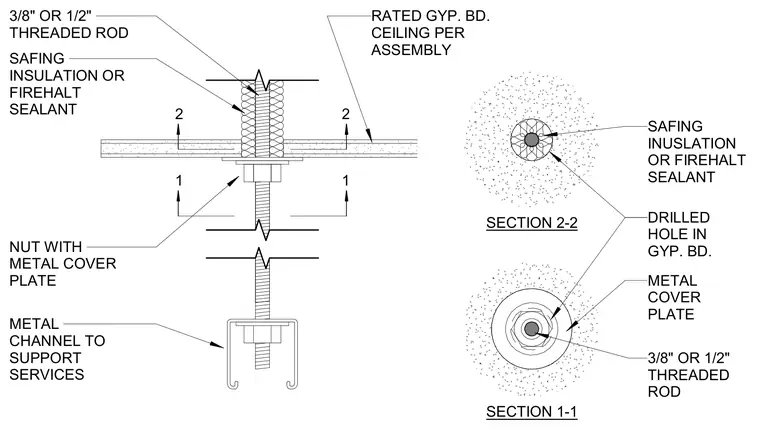

A three-eighths-inch or one-half-inch threaded rod penetrates a drilled hole in a rated gypsum board ceiling assembly. The annular space is packed with safing insulation or firehalt sealant. A metal cover plate and nut secure the assembly at the underside of the gypsum board ceiling, while a metal channel supports mechanical or electrical services below.
SECTION 2-2 SECTION 1-1 1 1 2 2 3/8" OR 1/2" THREADED ROD SAFING INSULATION OR FIREHALT SEALANT NUT WITH METAL COVER PLATE METAL CHANNEL TO SUPPORT SERVICES RATED GYP. BD. CEILING PER ASSEMBLY DRILLED HOLE IN GYP. BD. SAFING INUSLATION OR FIREHALT SEALANT METAL COVER PLATE 3/8" OR 1/2" THREADED ROD
