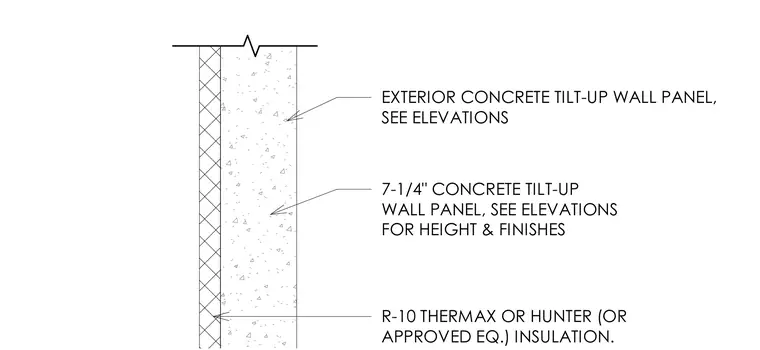

An exterior concrete tilt-up wall panel is detailed with a thickness of seven and one-quarter inches and height and finishes sized per elevations. Continuous R-10 Thermax or Hunter rigid insulation is applied to the exterior face of the concrete panel.
EXTERIOR CONCRETE TILT-UP WALL PANEL, SEE ELEVATIONS 7-1/4" CONCRETE TILT-UP WALL PANEL, SEE ELEVATIONS FOR HEIGHT & FINISHES R-10 THERMAX OR HUNTER (OR APPROVED EQ.) INSULATION.
