Architectural · A-GRWYV

Wood Window Head and Stucco Soffit Detail at Steel Beam

Materials

Steel Timber / Wood Metal (misc.)Gypsum / Drywall EIFS / Plaster / Stucco

Elements

Columns Beams Windows Ceilings

Connections

Welded Connection Timber / Mass-Timber Connection

About this detail

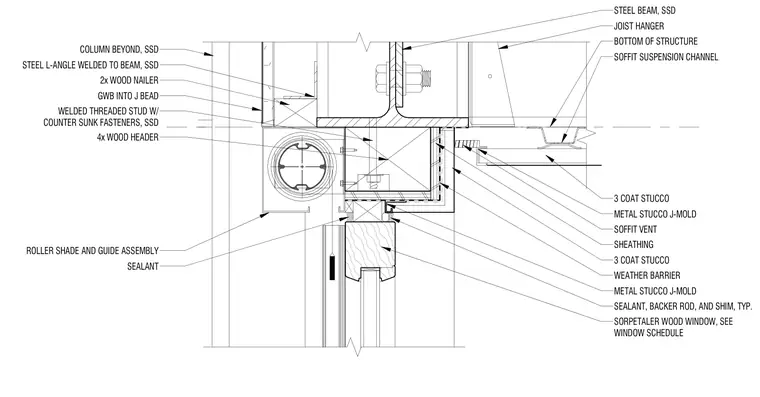

A wood window head is anchored below a structural steel beam and a four-by wood header, with a steel L-angle welded to the beam providing secondary support. A two-by wood nailer and gypsum wall board finished with a J-bead frame the interior head condition alongside a recessed roller shade and guide assembly. The exterior transition features a three-coat stucco soffit over sheathing and a weather barrier, terminated with metal stucco J-molds and a soffit vent. A welded threaded stud with countersunk fasteners secures components near the window head, and the joint between the window frame and the stucco is sealed with sealant, a backer rod, and typical shims.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
