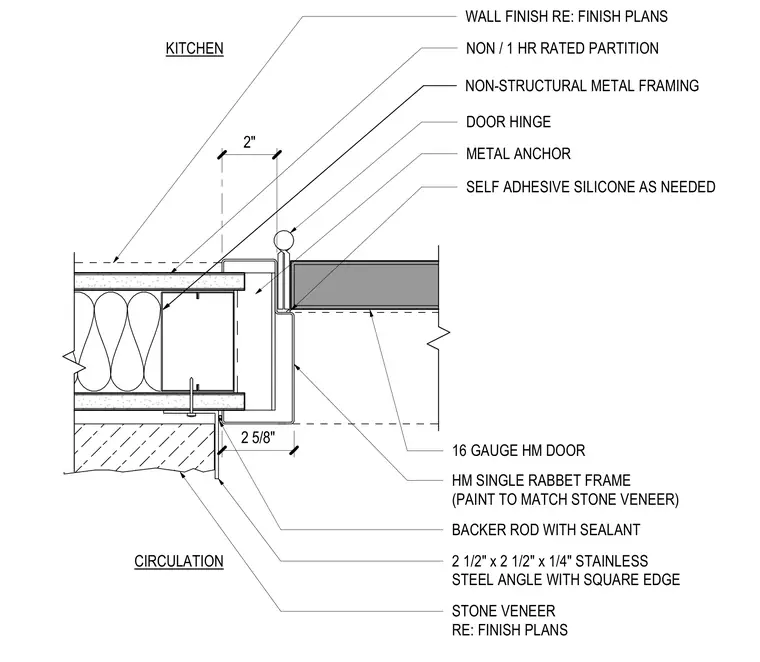

A hollow metal single rabbet frame is anchored to a non-structural metal framing one-hour rated partition separating the kitchen and circulation areas. The frame is painted to match the adjacent stone veneer and incorporates self-adhesive silicone silencers as needed. A two-and-a-half by two-and-a-half by one-quarter-inch stainless steel angle with a square edge is installed at the stone veneer base. A sixteen-gauge hollow metal door hangs from a door hinge secured within the assembly. Backer rod with sealant is provided at the transition between the frame and the stone veneer.
NON-STRUCTURAL METAL FRAMING NON / 1 HR RATED PARTITION METAL ANCHOR HM SINGLE RABBET FRAME (PAINT TO MATCH STONE VENEER) DOOR HINGE SELF ADHESIVE SILICONE AS NEEDED 2 5/8" 2" KITCHEN CIRCULATION STONE VENEER RE: FINISH PLANS BACKER ROD WITH SEALANT 16 GAUGE HM DOOR 2 1/2" x 2 1/2" x 1/4" STAINLESS STEEL ANGLE WITH SQUARE EDGE WALL FINISH RE: FINISH PLANS
