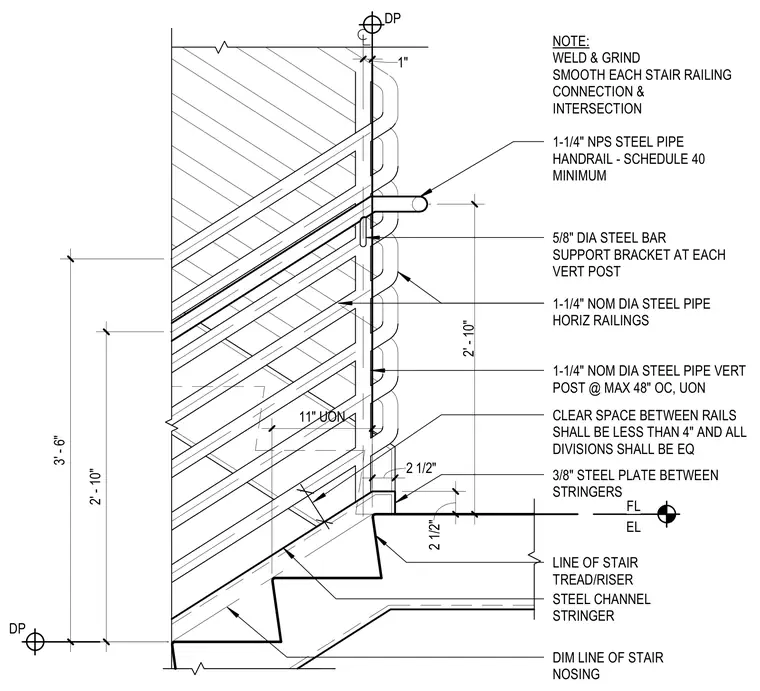

This stair railing assembly features a one-and-one-quarter-inch nominal diameter schedule forty steel pipe handrail supported by five-eighths-inch diameter steel bar brackets at each vertical post. One-and-one-quarter-inch nominal diameter steel pipe horizontal railings and vertical posts are spaced at a maximum of forty-eight inches on center unless otherwise noted. A three-eighths-inch steel plate is positioned between the steel channel stringers at the stair tread and riser transition. Clear space between rails is maintained under four inches with equal divisions. All stair railing connections and intersections are welded and ground smooth.
DP EL FL NOTE: WELD & GRIND SMOOTH EACH STAIR RAILING CONNECTION & INTERSECTION 1-1/4" NPS STEEL PIPE HANDRAIL - SCHEDULE 40 MINIMUM 5/8" DIA STEEL BAR SUPPORT BRACKET AT EACH VERT POST 1-1/4" NOM DIA STEEL PIPE HORIZ RAILINGS 1-1/4" NOM DIA STEEL PIPE VERT POST @ MAX 48" OC, UON 3/8" STEEL PLATE BETWEEN STRINGERS CLEAR SPACE BETWEEN RAILS SHALL BE LESS THAN 4" AND ALL DIVISIONS SHALL BE EQ LINE OF STAIR TREAD/RISER STEEL CHANNEL STRINGER DIM LINE OF STAIR NOSING DP 1" 2' - 10" 3' - 6" 2 1/2" 2 1/2" 2' - 10" 11" UON
