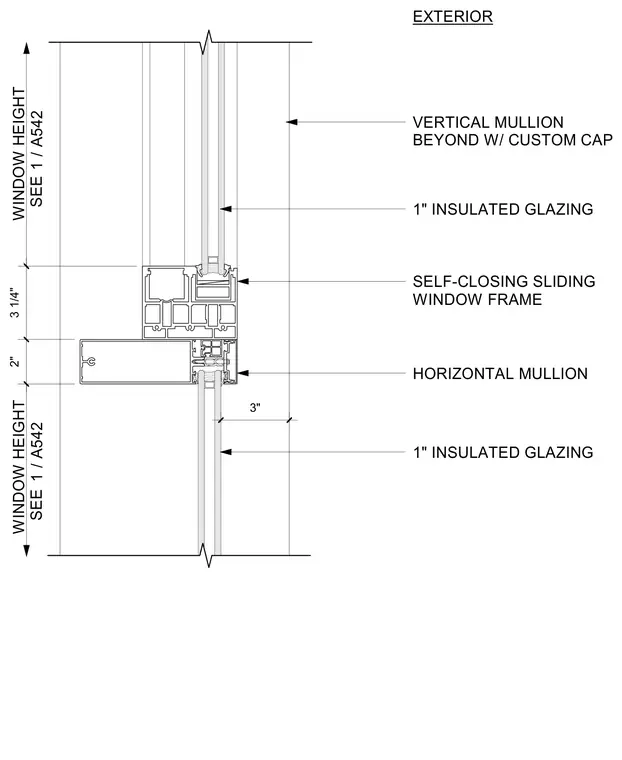

A self-closing sliding window frame mounts above a horizontal mullion with a two-inch profile in this take-out window sill detail. One-inch insulated glazing units install above and below the horizontal frame members, with vertical mullions visible beyond incorporating a custom cap. Dimensioning indicates standard glass heights referenced to sheet A542 and a three-inch vertical offset at the exterior base.
EXTERIOR 3" 2" 3 1/4" WINDOW HEIGHT SEE / 1 A542 WINDOW HEIGHT SEE / 1 A542 VERTICAL MULLION BEYOND W/ CUSTOM CAP 1" INSULATED GLAZING 1" INSULATED GLAZING HORIZONTAL MULLION SELF-CLOSING SLIDING WINDOW FRAME
