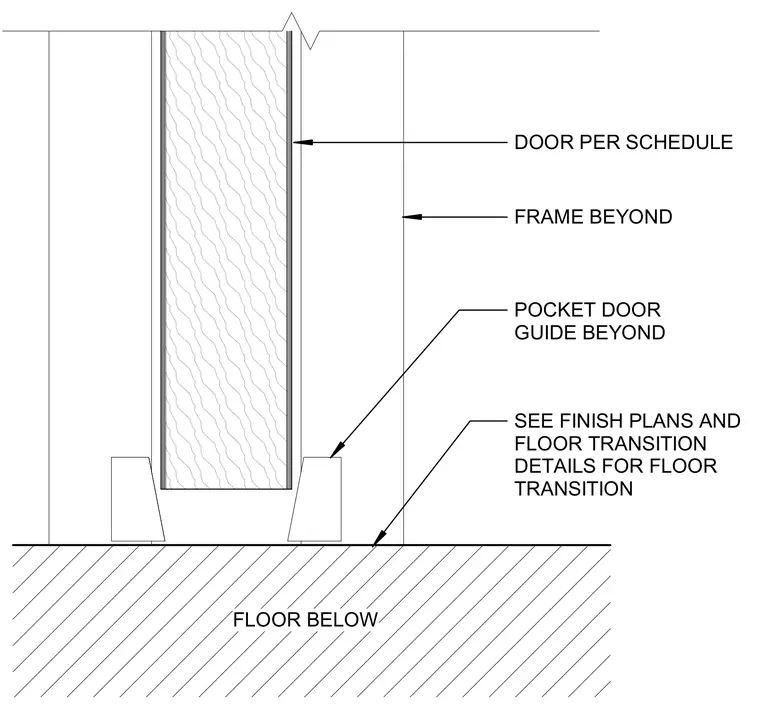

The pocket door panel hangs within the door frame as specified in the door schedule. Pocket door guides sit at the base on either side of the door panel. The floor below meets the transition details per finish plans.
FLOOR BELOW DOOR PER SCHEDULE SEE FINISH PLANS AND FLOOR TRANSITION DETAILS FOR FLOOR TRANSITION FRAME BEYOND POCKET DOOR GUIDE BEYOND
