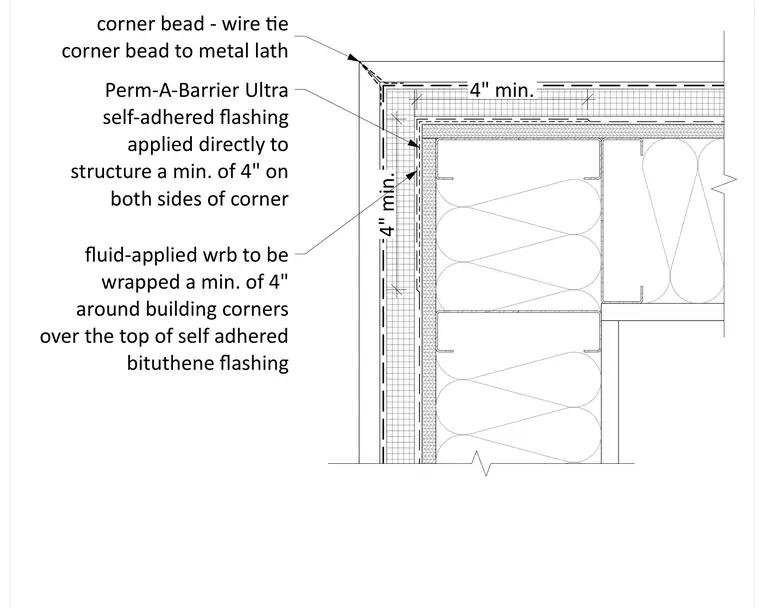

This outside corner assembly features a self-adhered flashing applied directly to the structure with a minimum four-inch overlap on both sides of the corner. A fluid-applied weather-resistive barrier is wrapped a minimum of four inches around the building corners over the top of the self-adhered bituthene flashing. A corner bead is wire-tied to the metal lath at the exterior corner.
4" min. 4" min. Perm-A-Barrier Ultra self-adhered flashing applied directly to structure a min. of 4" on both sides of corner fluid-applied wrb to be wrapped a min. of 4" around building corners over the top of self adhered bituthene flashing corner bead - wire Ɵe corner bead to metal lath
