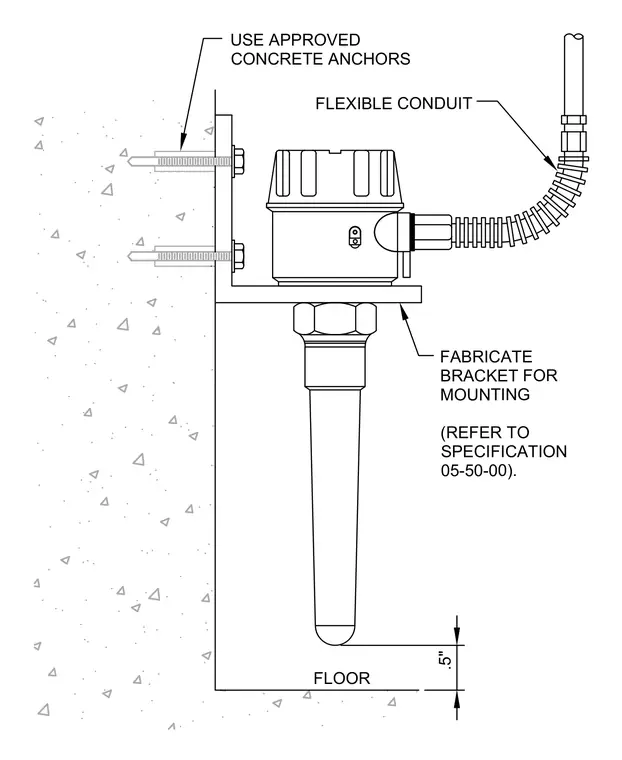

A capacitance level sensor is mounted to an L-shaped steel bracket that is anchored to a concrete wall using approved half-inch concrete anchors. The sensor probe extends downward toward the concrete floor with a half-inch clearance gap. Flexible conduit connects to the sensor housing for electrical wiring. The mounting bracket is fabricated in accordance with specification section 05-50-00.
FLOOR FABRICATE BRACKET FOR MOUNTING (REFER TO SPECIFICATION 05-50-00). FLEXIBLE CONDUIT USE APPROVED CONCRETE ANCHORS .5"
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
