A painted hollow metal door frame connects to double metal studs at the partition jamb using three anchors per jamb. The framing is finished on each side with five-eighths-inch gypsum board, with Type X gypsum board specified at rated partitions. Joint sealant is applied at the interface between the metal frame and the gypsum board finish.

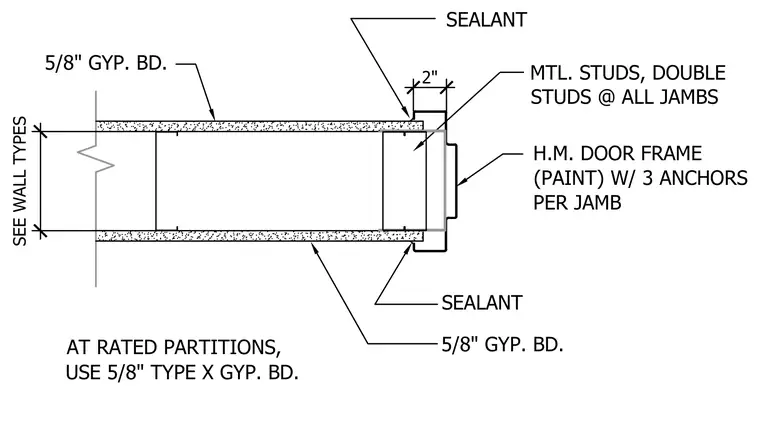

H.M. DOOR FRAME (PAINT) W/ 3 ANCHORS PER JAMB SEALANT SEALANT MTL. STUDS, DOUBLE STUDS @ ALL JAMBS 5/8" GYP. BD. 5/8" GYP. BD. SEE WALL TYPES 2" AT RATED PARTITIONS, USE 5/8" TYPE X GYP. BD.
