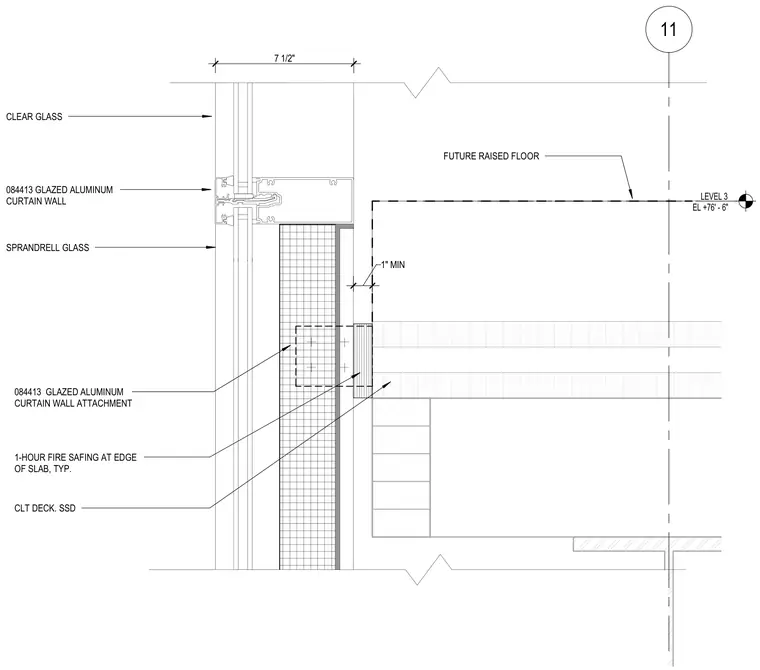

A glazed aluminum curtain wall system anchors to the edge of a cross-laminated timber deck with a seven and a half inch clear glass vision panel above and spandrel glass below. One-hour fire safing insulation fills the perimeter gap at the edge of the slab. A future raised floor assembly sits one inch minimum above the structural timber deck.
LEVEL 3 EL +76' - 6" 11 SPRANDRELL GLASS 1-HOUR FIRE SAFING AT EDGE OF SLAB, TYP. 084413 GLAZED ALUMINUM CURTAIN WALL 7 1/2" CLEAR GLASS 084413 GLAZED ALUMINUM CURTAIN WALL ATTACHMENT CLT DECK. SSD FUTURE RAISED FLOOR 1" MIN
