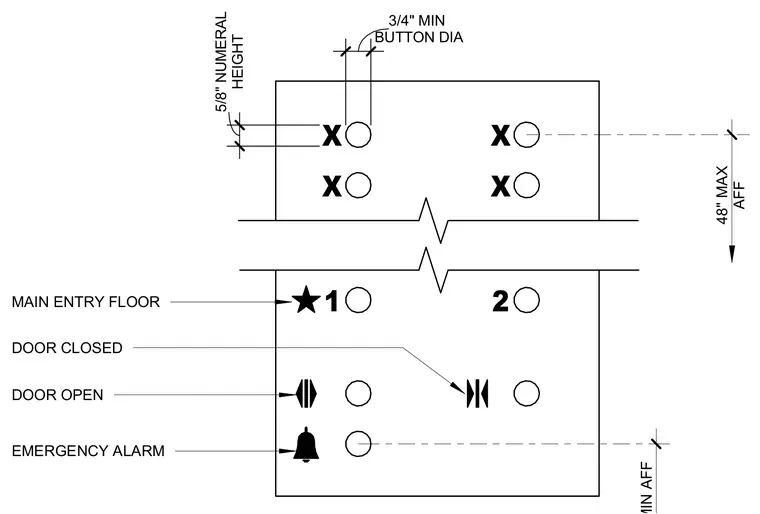

An elevator car operating panel layout with button dimensions, designations, and accessible mounting heights. The configuration features three-quarter-inch minimum diameter buttons with five-eighths-inch numeral heights. The highest operative control is positioned at a maximum of forty-eight inches above the finished floor. Specific symbols designate the main entry floor, door open, door closed, and emergency alarm functions.
X X X X 1 2 HEIGHT 5/8" NUMERAL BUTTON DIA 3/4" MIN EMERGENCY ALARM DOOR OPEN DOOR CLOSED MAIN ENTRY FLOOR 48" MAX AFF
