A twelve-gauge by one-inch wide ceiling clip secures the hanger wire and brace wire assembly to wood framing members using a three-eighths-inch diameter expansion anchor. The hanger wire incorporates three turns at each end with a maximum three-inch spacing, while the brace wire requires four turns at each end set at an angle between ten and forty-five degrees. The clip features a bent tab to align properly with the angled brace wire. Clearances and dimensional tolerances are maintained at one-half inch typical unless otherwise noted.

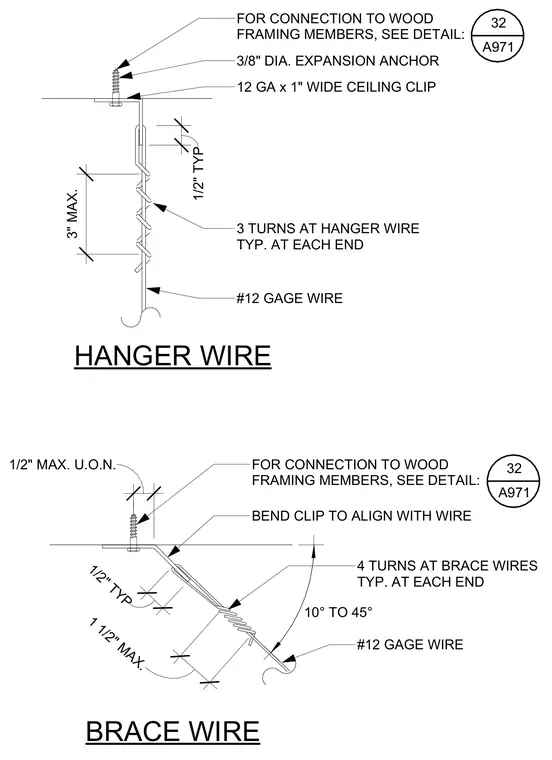

3 TURNS AT HANGER WIRE TYP. AT EACH END 4 TURNS AT BRACE WIRES TYP. AT EACH END 12 GA x 1" WIDE CEILING CLIP HANGER WIRE BRACE WIRE 1 1/2" MAX. 10° TO 45° 3" MAX. 1/2" MAX. U.O.N. #12 GAGE WIRE #12 GAGE WIRE 1/2" TYP 1/2" TYP BEND CLIP TO ALIGN WITH WIRE 3/8" DIA. EXPANSION ANCHOR FOR CONNECTION TO WOOD FRAMING MEMBERS, SEE DETAIL: FOR CONNECTION TO WOOD FRAMING MEMBERS, SEE DETAIL: 32 A971 32 A971
