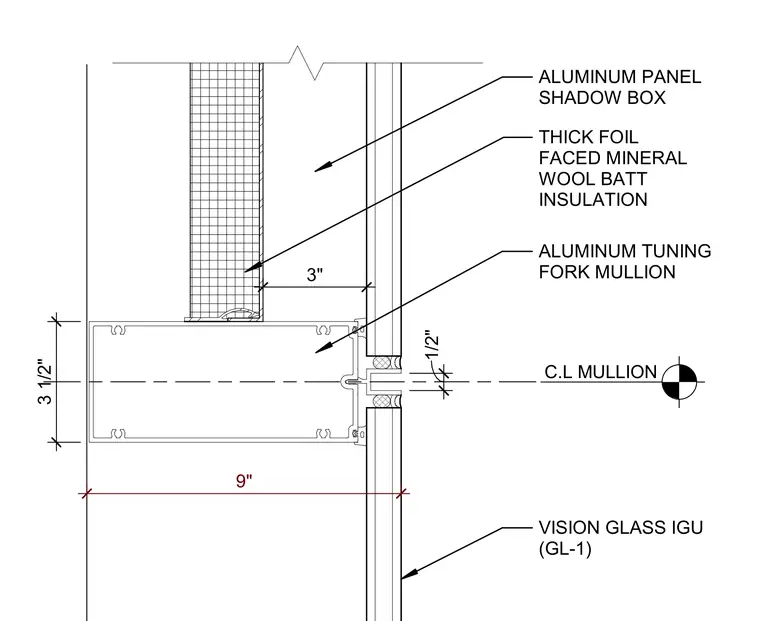

An aluminum tuning fork mullion centers on the framing layout to support an exterior vision glass insulated glazing unit designated GL-1 and an adjacent aluminum panel shadow box. Thick foil-faced mineral wool batt insulation fills the shadow box cavity behind the panel. The mullion profile measures three and one-half inches in height with a nine-inch overall dimension to the glazing plane, maintaining a one-half inch joint spacing at the mullion centerline.
C.L MULLION ALUMINUM PANEL SHADOW BOX VISION GLASS IGU (GL-1) ALUMINUM TUNING FORK MULLION THICK FOIL FACED MINERAL WOOL BATT INSULATION 3" 3 1/2" 1/2" 9"
