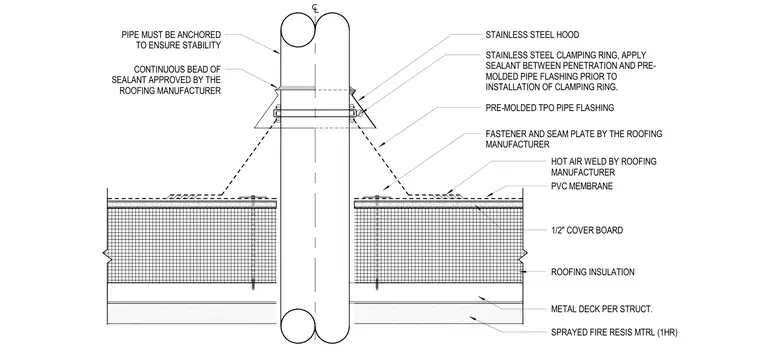

A large pipe penetration passes through a membrane roof assembly consisting of a metal deck, sprayed fire-resistant material, roofing insulation, half-inch cover board, and PVC membrane roofing. A pre-molded TPO pipe flashing is hot air welded to the roofing membrane, secured with fasteners and seam plates. A stainless steel clamping ring is installed with sealant between the penetration and pipe flashing, topped with a continuous bead of sealant approved by the roofing manufacturer. A stainless steel hood protects the upper joint, and the penetrating pipe must be anchored to ensure stability.
CONTINUOUS BEAD OF SEALANT APPROVED BY THE ROOFING MANUFACTURER STAINLESS STEEL CLAMPING RING, APPLY SEALANT BETWEEN PENETRATION AND PRE- MOLDED PIPE FLASHING PRIOR TO INSTALLATION OF CLAMPING RING. PRE-MOLDED TPO PIPE FLASHING HOT AIR WELD BY ROOFING MANUFACTURER PVC MEMBRANE ROOFING INSULATION 1/2" COVER BOARD METAL DECK PER STRUCT. FASTENER AND SEAM PLATE BY THE ROOFING MANUFACTURER PIPE MUST BE ANCHORED TO ENSURE STABILITY STAINLESS STEEL HOOD SPRAYED FIRE RESIS MTRL (1HR)
