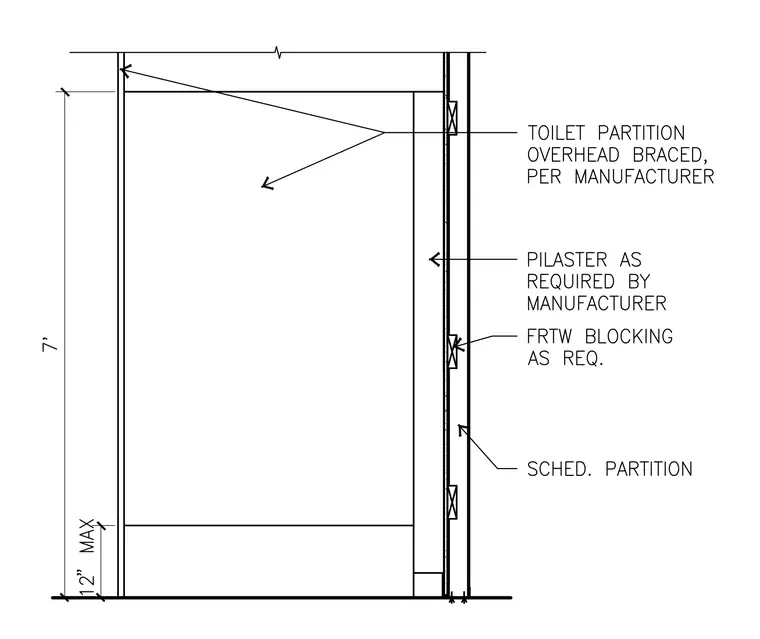

An overhead braced toilet partition is anchored to a scheduled partition wall supported by fire-retardant-treated wood blocking as required. A pilaster is provided per the manufacturer requirements. The partition features a seven-foot height with a maximum twelve-inch clearance at the base.
