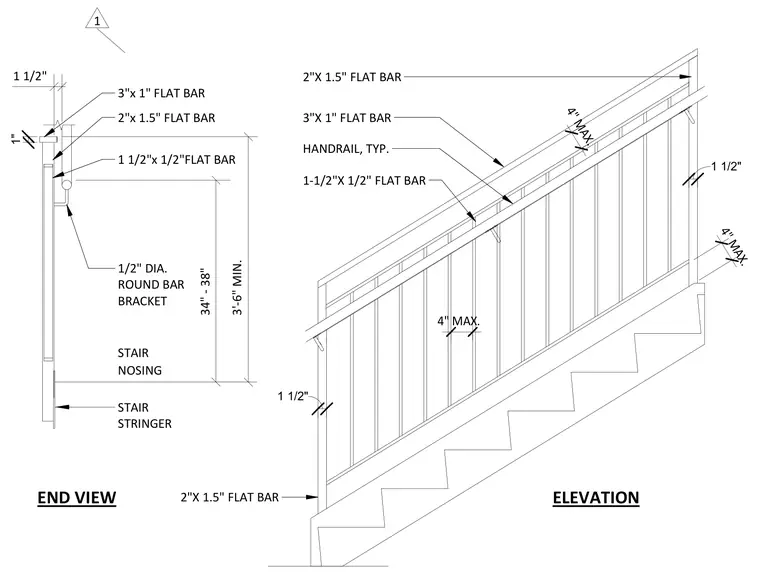

This stair railing assembly features a top handrail made from a two-inch by one-and-a-half-inch flat bar paired with a three-inch by one-inch flat bar. Vertical pickets and intermediate rails utilize one-and-a-half-inch by half-inch flat bars spaced to maintain a maximum four-inch opening. The handrail is supported by a half-inch diameter round bar bracket mounted to the vertical supports. The overall guard height is three feet six inches minimum, with the handrail positioned between thirty-four and thirty-eight inches above the stair nosing.
1-1/2"X 1/2" FLAT BAR ELEVATION STAIR NOSING STAIR STRINGER 34" - 38" 3'-6" MIN. 1 1/2" 1/2" DIA. ROUND BAR BRACKET END VIEW 2"X 1.5" FLAT BAR 4" MAX. HANDRAIL, TYP. 1" 3"x 1" FLAT BAR 2"x 1.5" FLAT BAR 1 1/2"x 1/2"FLAT BAR 3"X 1" FLAT BAR 2"X 1.5" FLAT BAR 1 1/2" 1 1/2" 4" MAX. 4" MAX. 1
