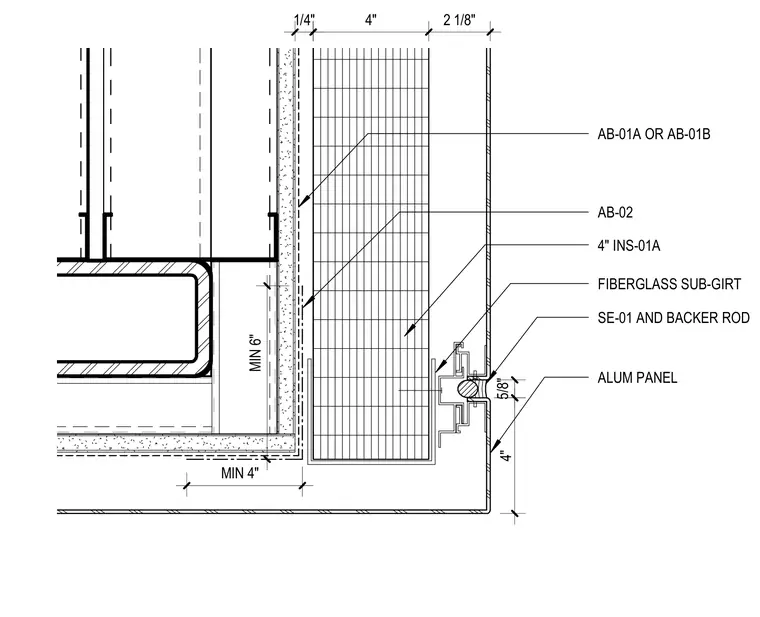

An exterior corner assembly features an aluminum panel system mounted over fiberglass sub-girts and a four-inch layer of insulation. Sealant and a backer rod are detailed at the panel joints. The assembly is dimensioned with specific minimum clearances and edge distances.
4" 5/8" ALUM PANEL AB-01A OR AB-01B AB-02 MIN 6" MIN 4" SE-01 AND BACKER ROD 1/4" 4" INS-01A FIBERGLASS SUB-GIRT 2 1/8" 4"
