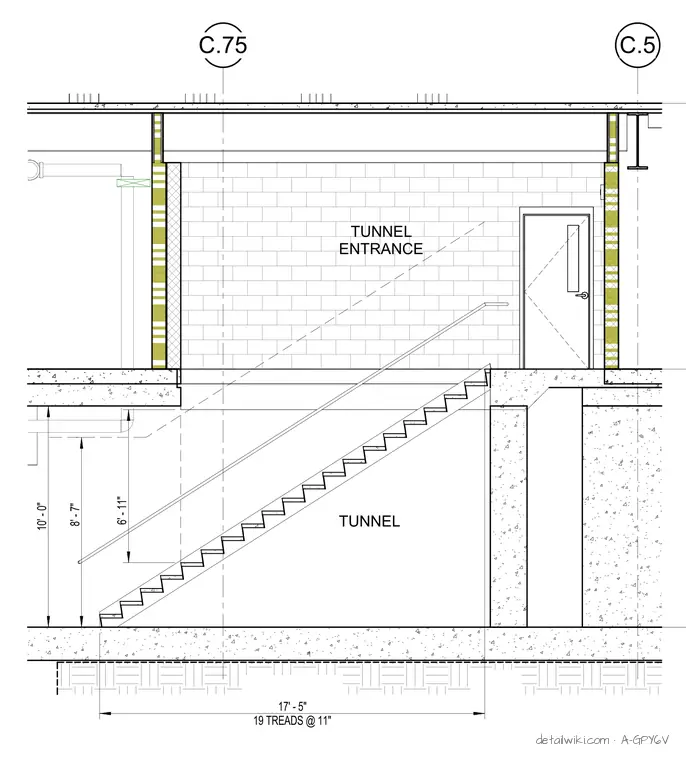

Text on the drawing
C.5 C.75 TUNNEL TUNNEL ENTRANCE 19 TREADS @ 11" 17' - 5" 10' - 0" 8' - 7" 6' - 11"
