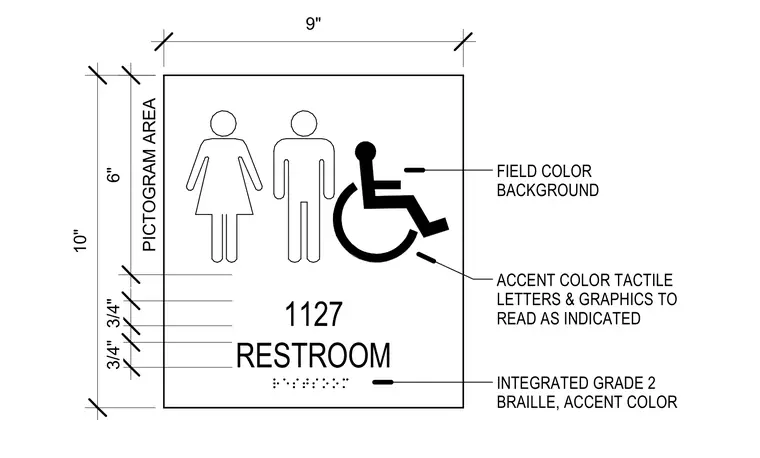

The accessible restroom sign measures 10 inches high by 9 inches wide and features a field color background with accent color tactile letters and graphics. A 6-inch high pictogram area displays male, female, and wheelchair accessibility symbols. Room identification numbers and text read as indicated with accent color tactile elements. Integrated Grade 2 braille in the accent color is positioned below the text.
RESTROOM 10" 9" 3/4" FIELD COLOR BACKGROUND ACCENT COLOR TACTILE LETTERS & GRAPHICS TO READ AS INDICATED INTEGRATED GRADE 2 BRAILLE, ACCENT COLOR PICTOGRAM AREA 6" 1127 3/4"
