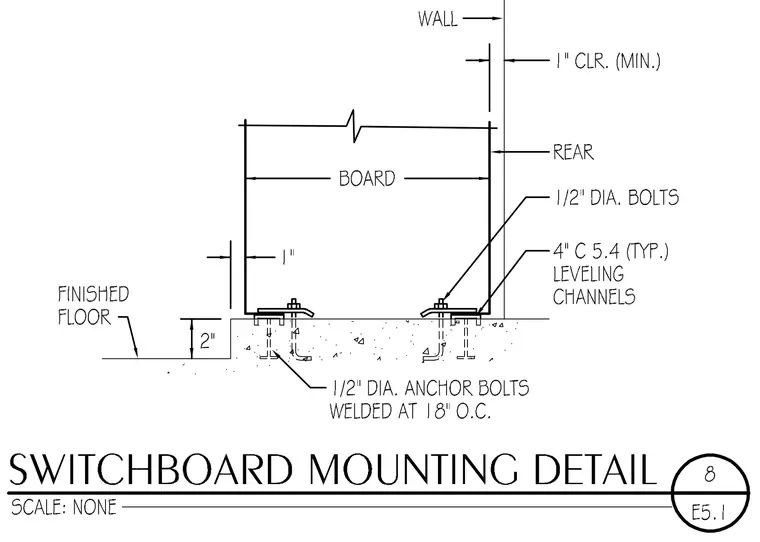

A switchboard board unit mounts over a concrete floor slab with a two-inch raised housekeeping pad, maintaining a one-inch minimum clearance from the rear wall. The unit rests on typical four-inch C5.4 leveling channels secured by one-half-inch diameter bolts. The leveling channels anchor to the concrete slab using one-half-inch diameter anchor bolts welded at eighteen inches on center.
