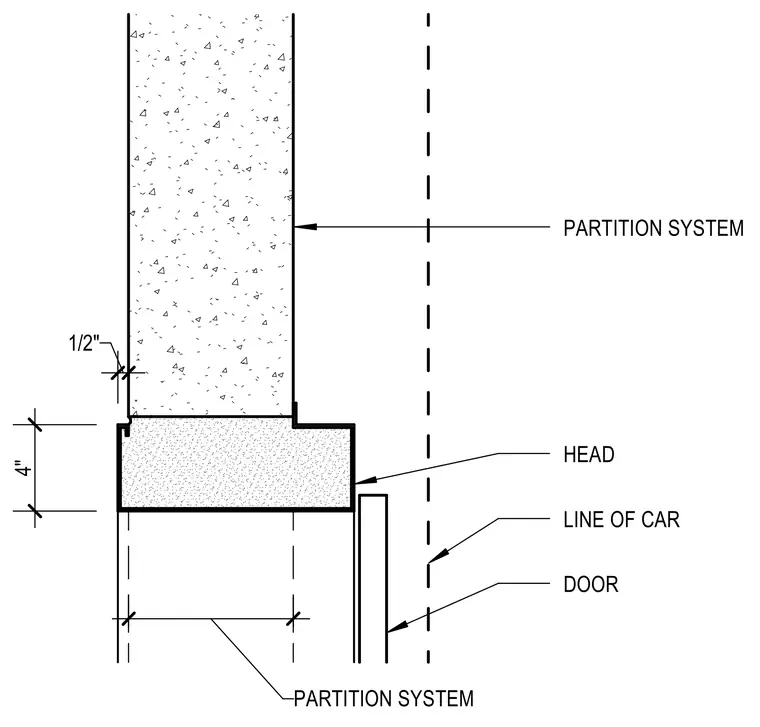

An elevator car door head aligns with a partition system assembly. A four-inch dimension establishes the clearance height for the door opening. A one-half-inch offset separates the partition face from the door frame head.
