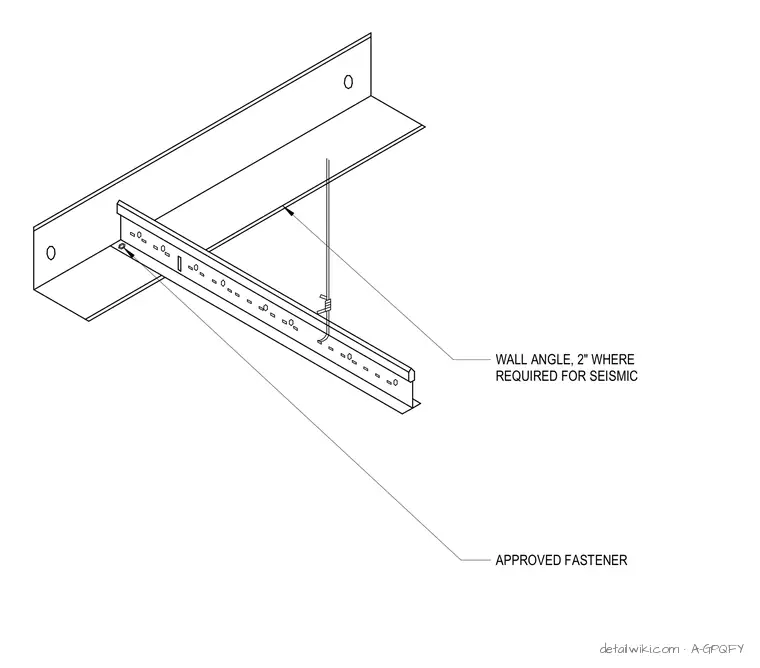

The suspended ceiling grid main runner terminates at the perimeter wall, supported by a wall angle. The wall angle secures to the wall substrate with an approved fastener. A two-inch wall angle is required for seismic bracing conditions. A vertical hanger wire provides additional support for the ceiling grid.
Text on the drawing
APPROVED FASTENER WALL ANGLE, 2" WHERE REQUIRED FOR SEISMIC
