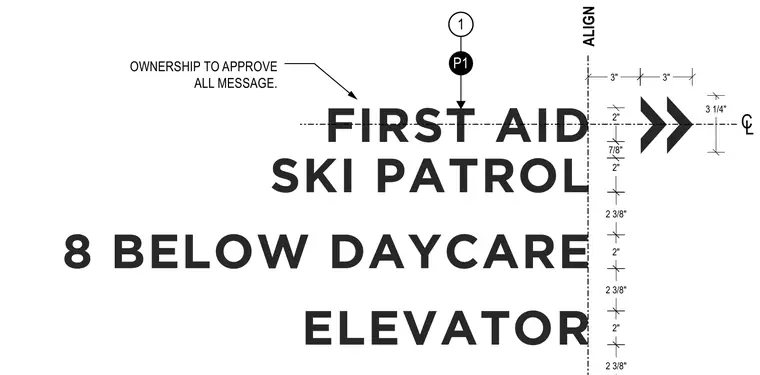

This wall-mounted wayfinding sign layout details the text alignment, spacing, and dimensions for a multi-line directional sign. The layout includes lines of text reading FIRST AID SKI PATROL 8 BELOW DAYCARE ELEVATOR alongside a directional arrow symbol aligned to a vertical reference line. Dimension callouts indicate vertical spacing of two inches, two and three-eighths inches, and seven-eighths of an inch between text lines, with three-inch horizontal dimensions for the arrow and alignment markers. A drawing note specifies that ownership must approve all messaging.
FIRST AID SKI PATROL 8 BELOW DAYCARE ELEVATOR P1 1 ALIGN 2" 2" 2 3/8" 2" 2 3/8" 2" 2 3/8" 3" 3" 3 1/4" 7/8" OWNERSHIP TO APPROVE ALL MESSAGE.
