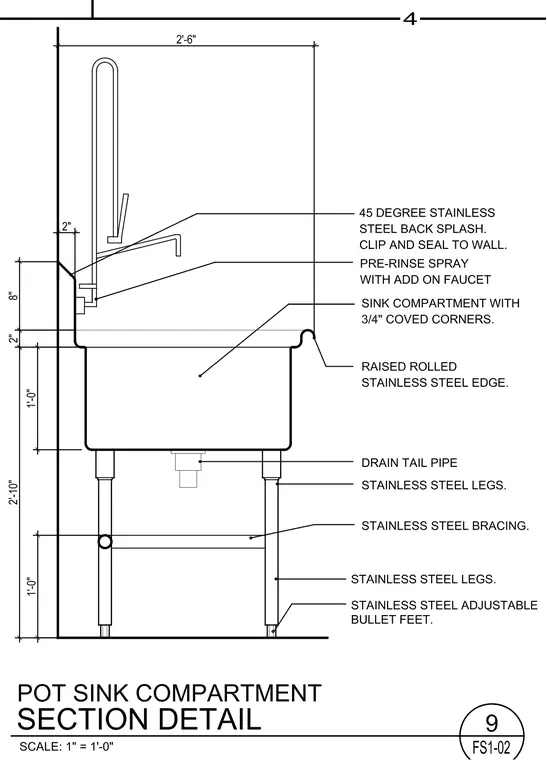

A pot sink compartment with a forty-five degree stainless steel back splash is clipped and sealed to the wall above a pre-rinse spray with an add-on faucet. The sink compartment features three-quarter inch coved corners and a raised rolled stainless steel edge. Below the basin, a drain tail pipe connects to the plumbing, and the assembly is supported by stainless steel legs with stainless steel bracing and adjustable bullet feet.
