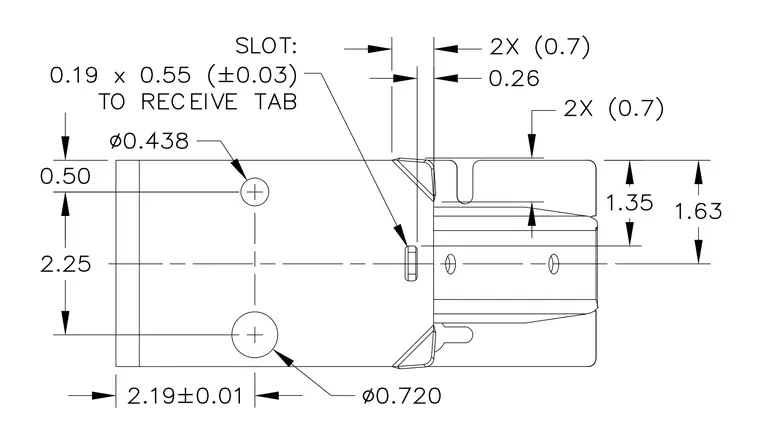

This single-piece wood seat bracket assembly is detailed with precise dimensional tolerances for mounting and structural connection. The bracket incorporates two 0.720-inch diameter fastener holes spaced 2.19 inches from the edge, along with a 0.438-inch diameter hole. A central slot measuring 0.19 by 0.55 inches is provided to receive an interlocking tab. Overall height dimensions of 1.63 and 1.35 inches define the profile, with specific offsets of 0.26 and 0.7 inches managing the component geometry.
2.19±0.01 ∅0.720 SLOT: 0.19 x 0.55 (±0.03) TO RECEIVE TAB ∅0.438 2X (0.7) 0.26 2X (0.7) 2.25 0.50 1.63 1.35 v 0 I B ! £ Ak + -i- +
