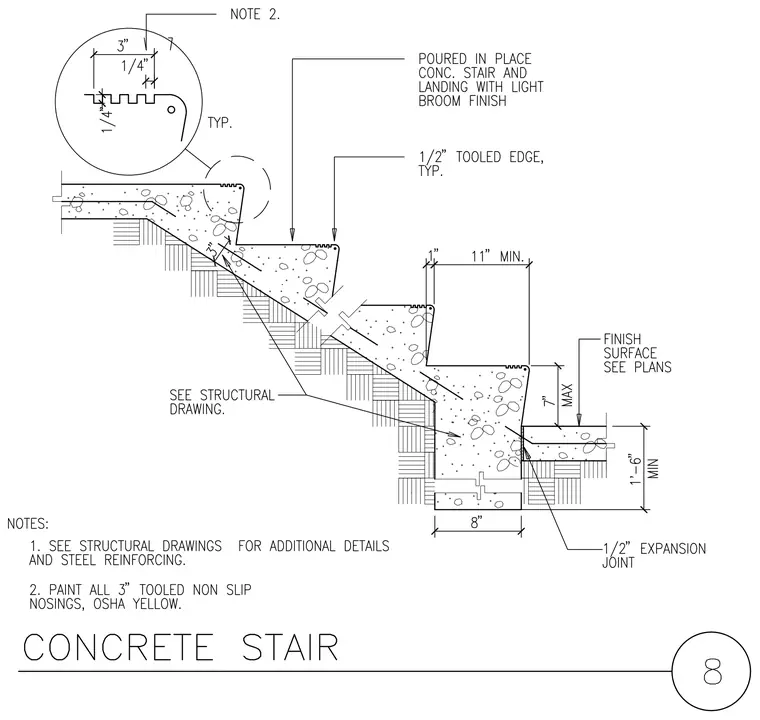

A poured in place concrete stair and landing features a light broom finish and a half-inch tooled edge typical at treads. The stair features three-inch tooled non-slip nosings painted OSHA yellow per note two, with dimensions showing an eleven-inch minimum tread depth and seven-inch maximum riser height. A half-inch expansion joint is provided at the landing interface above an eight-inch foundation wall with a one-foot six-inch minimum height. Reinforcing and structural details are coordinated per structural drawings.
