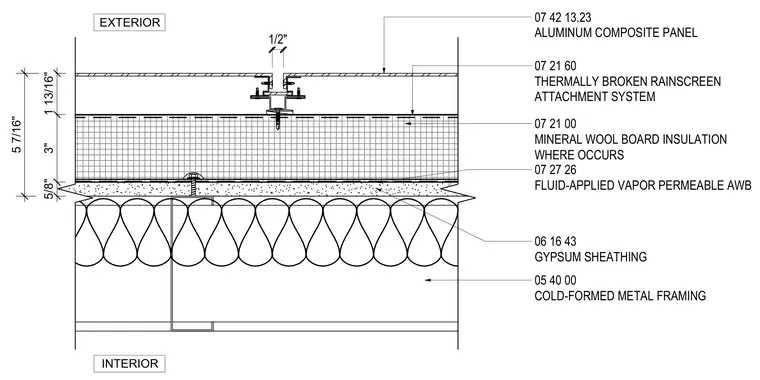

This plan detail shows an aluminum composite panel rainscreen system mounted over a thermally broken attachment system and 3 inches of mineral wool board insulation. A fluid-applied vapor permeable air-water barrier coats the 5/8-inch exterior gypsum sheathing, which is fastened to cold-formed metal framing. The aluminum composite panels feature a 1/2-inch joint width with a 5 7/16-inch total assembly thickness from the face of the sheathing.
1 13/16" 3" 5/8" EXTERIOR 5 7/16" 06 16 43 GYPSUM SHEATHING 07 27 26 FLUID-APPLIED VAPOR PERMEABLE AWB 05 40 00 COLD-FORMED METAL FRAMING 07 21 00 MINERAL WOOL BOARD INSULATION WHERE OCCURS 07 42 13.23 ALUMINUM COMPOSITE PANEL 07 21 60 THERMALLY BROKEN RAINSCREEN ATTACHMENT SYSTEM 1/2" INTERIOR
