Architectural · A-GP39T

Ramp Base Section with Steel Handrail and Grate

Materials

Elements

About this detail

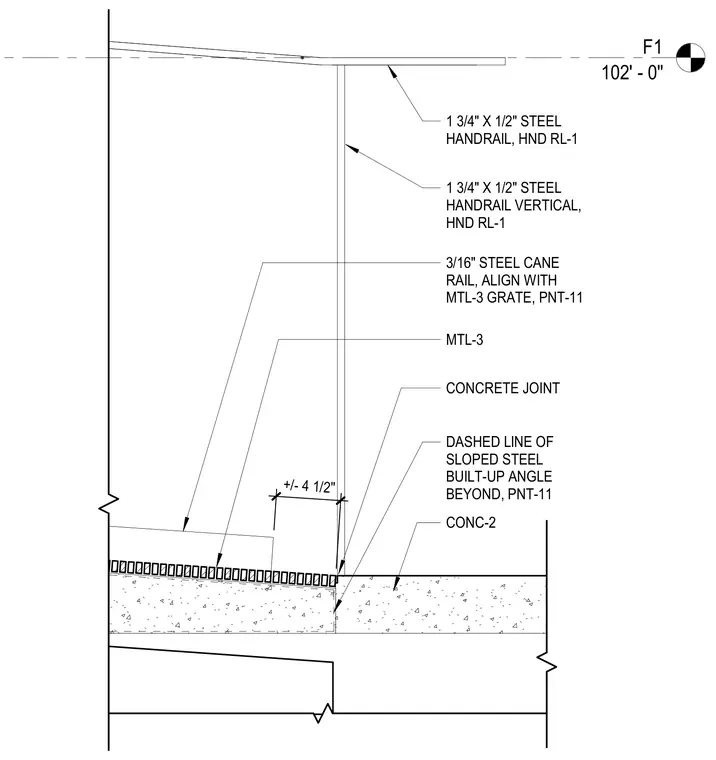

The transition at the bottom of a concrete ramp adjacent to a concrete joint and a sloped steel built-up angle occurs here. A 1 3/4 inch by 1/2 inch steel handrail and vertical support, designated as HND RL-1, anchor near the base. A 3/16 inch steel cane rail aligns with a metal grate designated as MTL-3 and painted with PNT-11. The concrete slab features a designated joint and a four-and-a-half-inch dimensional tolerance.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
