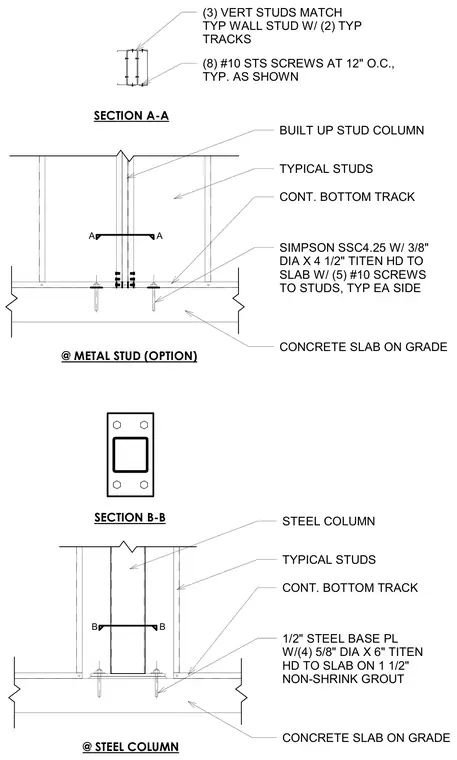

A built-up stud column or structural steel column is anchored to a concrete slab on grade with a continuous bottom track. The steel column utilizes a one-half-inch steel base plate secured with four five-eighth-inch diameter by six-inch Titen HD concrete screws over a one-and-one-half-inch non-shrink grout layer. The metal stud option features a Simpson SSC4.25 clip attached with three-eighth-inch by four-and-one-half-inch Titen HD anchors to the slab and five number ten screws to the studs on each side. The built-up stud column consists of three vertical studs matching typical wall studs with two typical tracks fastened by eight number ten steel-to-steel screws at twelve inches on center.
STEEL COLUMN TYPICAL STUDS CONT. BOTTOM TRACK 1/2" STEEL BASE PL W/(4) 5/8" DIA X 6" TITEN HD TO SLAB ON 1 1/2" NON-SHRINK GROUT CONCRETE SLAB ON GRADE B B @ STEEL COLUMN SECTION A-A BUILT UP STUD COLUMN TYPICAL STUDS CONT. BOTTOM TRACK SIMPSON SSC4.25 W/ 3/8" DIA X 4 1/2" TITEN HD TO SLAB W/ (5) #10 SCREWS TO STUDS, TYP EA SIDE CONCRETE SLAB ON GRADE A A @ METAL STUD (OPTION) (3) VERT STUDS MATCH TYP WALL STUD W/ (2) TYP TRACKS (8) #10 STS SCREWS AT 12" O.C., TYP. AS SHOWN SECTION B-B
