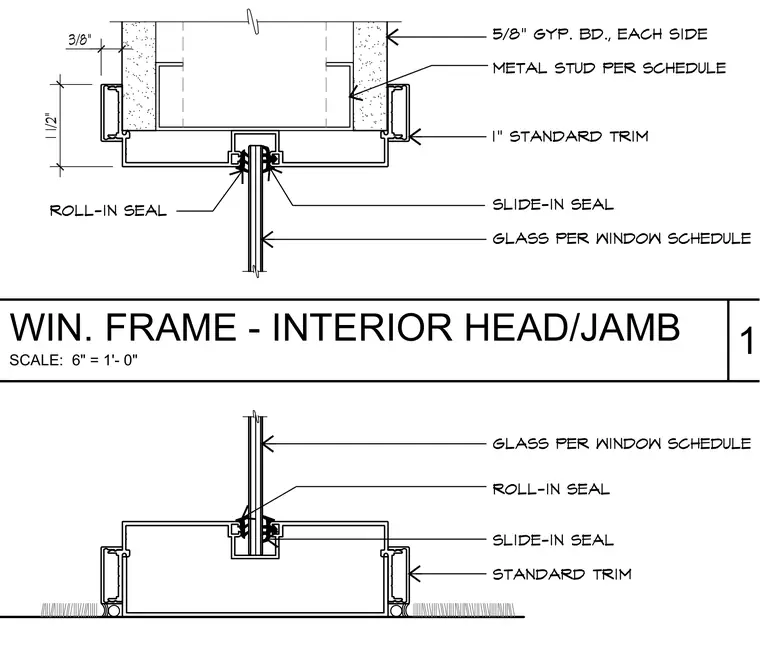

An interior aluminum window frame mounts to a metal stud partition lined with five-eighths inch gypsum board on each side. One-inch standard trim finishes the junction between the metal framing and the wall board. Glass per the window schedule is secured within the aluminum framing profile using roll-in and slide-in seals.
17b WIN. FRAME - INTERIOR HEAD/JAMB SCALE: 6" = 1'- 0"
