A fully welded hollow metal door frame connects to the jamb stud assembly with continuous non-hardening resilient sealant applied on both sides where the frame meets the finished opening wall. Continuous insulation is packed inside the hollow metal frame cavity. Perimeter gasketing runs continuously at the head and jambs per the manufacturer requirements.

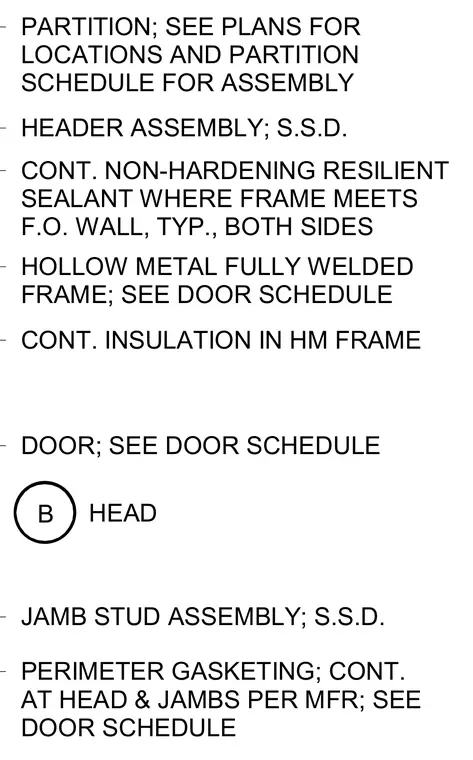

HOLLOW METAL FULLY WELDED FRAME; SEE DOOR SCHEDULE HEADER ASSEMBLY; S.S.D. CONT. NON-HARDENING RESILIENT SEALANT WHERE FRAME MEETS F.O. WALL, TYP., BOTH SIDES PARTITION; SEE PLANS FOR LOCATIONS AND PARTITION SCHEDULE FOR ASSEMBLY PERIMETER GASKETING; CONT. AT HEAD & JAMBS PER MFR; SEE DOOR SCHEDULE DOOR; SEE DOOR SCHEDULE JAMB STUD ASSEMBLY; S.S.D. B HEAD CONT. INSULATION IN HM FRAME
