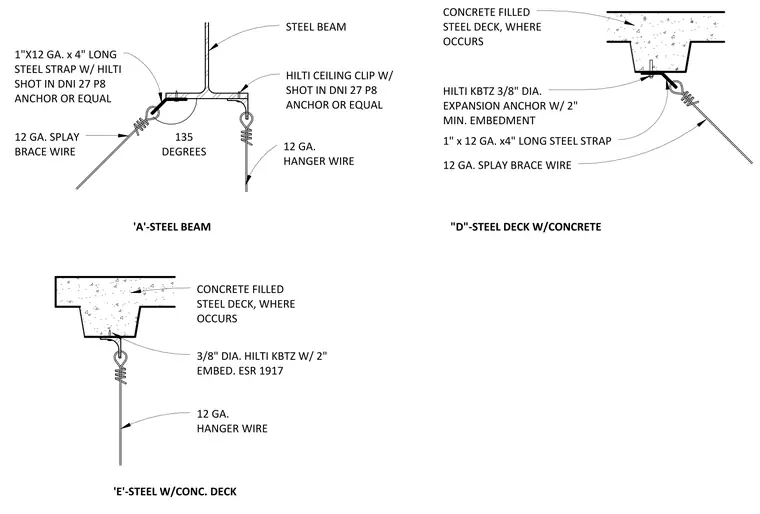

Suspended ceiling hanger wires and splay braces anchor to various steel and concrete overhead structures through specific attachment assemblies. Steel beam connections utilize a one-inch by twelve gauge by four-inch long steel strap secured with a Hilti shot-in DNI 27 P8 anchor or equal, connecting to a twelve gauge splay brace wire bent at a one hundred thirty-degree angle. A Hilti ceiling clip with a shot-in DNI 27 P8 anchor or equal secures the twelve gauge hanger wire directly to the steel beam flange. Concrete-filled steel deck connections anchor using a three-eighths inch diameter Hilti KBTZ expansion anchor with a two-inch minimum embedment per ESR 1917, holding a steel strap and twelve gauge splay brace wire or a twelve gauge hanger wire.
STEEL BEAM 1"X12 GA. x 4" LONG STEEL STRAP W/ HILTI SHOT IN DNI 27 P8 ANCHOR OR EQUAL 12 GA. SPLAY BRACE WIRE 135 DEGREES HILTI CEILING CLIP W/ SHOT IN DNI 27 P8 ANCHOR OR EQUAL 12 GA. HANGER WIRE CONCRETE FILLED STEEL DECK, WHERE OCCURS HILTI KBTZ 3/8" DIA. EXPANSION ANCHOR W/ 2" MIN. EMBEDMENT 1" x 12 GA. x4" LONG STEEL STRAP 12 GA. SPLAY BRACE WIRE CONCRETE FILLED STEEL DECK, WHERE OCCURS 3/8" DIA. HILTI KBTZ W/ 2" EMBED. ESR 1917 12 GA. HANGER WIRE "D"‐STEEL DECK W/CONCRETE 'E'‐STEEL W/CONC. DECK 'A'‐STEEL BEAM
