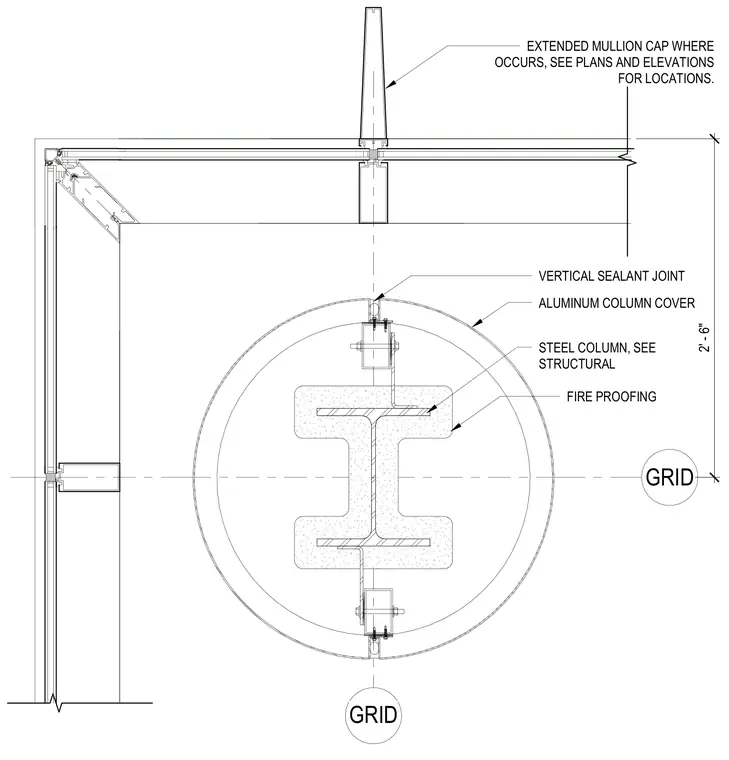

An extended mullion cap occurs where indicated on plans and elevations above the perimeter framing. The assembly features an aluminum column cover wrapping a structural steel column with applied fireproofing. Brackets and vertical fasteners secure the column cover halves together, creating a vertical sealant joint at the closure. The exterior envelope transitions into a corner mullion profile with continuous glazing lines.
GRID GRID 2' - 6" EXTENDED MULLION CAP WHERE OCCURS, SEE PLANS AND ELEVATIONS FOR LOCATIONS. STEEL COLUMN, SEE STRUCTURAL FIRE PROOFING VERTICAL SEALANT JOINT ALUMINUM COLUMN COVER
