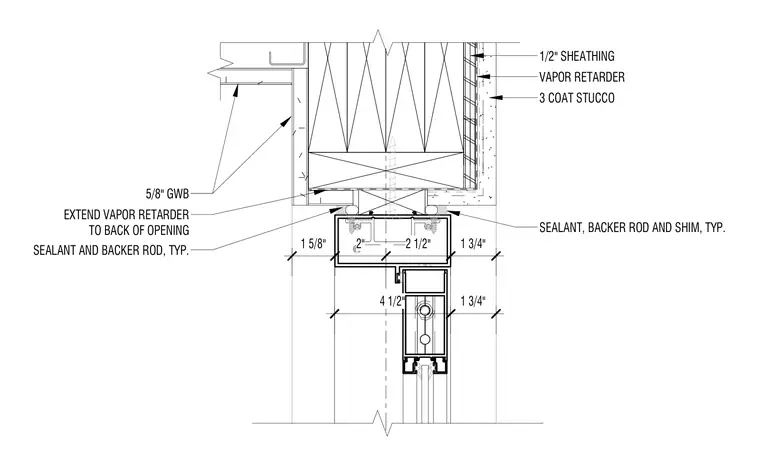

An exterior wall opening assembly finished with three-coat stucco over a vapor retarder and half-inch sheathing meets a framed window head. The vapor retarder wraps continuously to the back of the opening. The interior jamb is lined with five-eighths-inch gypsum wallboard. A sealant bead, backer rod, and shim are installed at the window frame perimeter for weatherproofing.
1/2" SHEATHING VAPOR RETARDER 3 COAT STUCCO 5/8" GWB EXTEND VAPOR RETARDER TO BACK OF OPENING SEALANT AND BACKER ROD, TYP. SEALANT, BACKER ROD AND SHIM, TYP. 1 5/8" 2" 2 1/2" 1 3/4" 4 1/2" 1 3/4"
