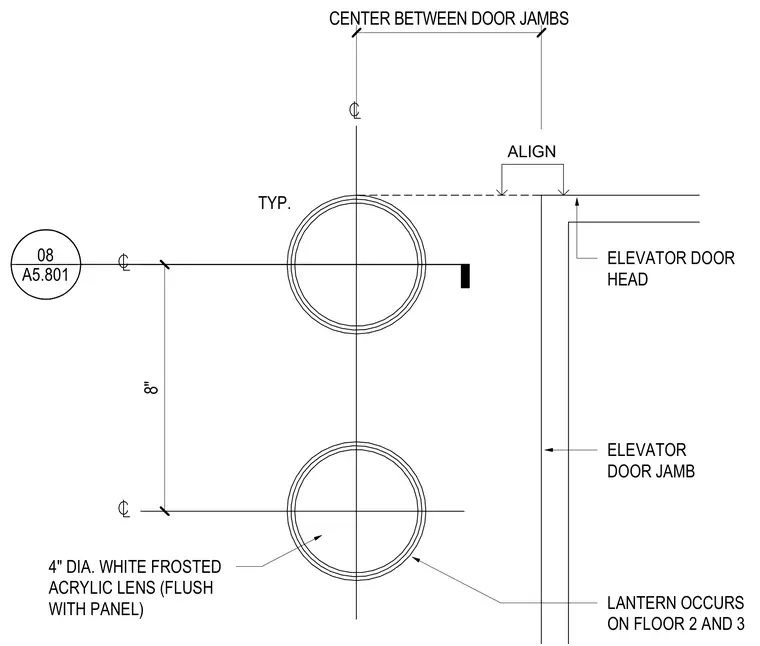

An elevator hall lantern assembly is centered on the wall with a four-inch diameter white frosted acrylic lens installed flush with the panel. The fixture aligns horizontally with the elevator door head and is positioned eight inches on center between the door jambs typically. This lantern installation occurs on floors two and three.
4" DIA. WHITE FROSTED ACRYLIC LENS (FLUSH WITH PANEL) ELEVATOR DOOR JAMB 8" CENTER BETWEEN DOOR JAMBS TYP. ELEVATOR DOOR HEAD LANTERN OCCURS ON FLOOR 2 AND 3 ALIGN 08 A5.801 ________ ________
