Architectural · A-GNCSA

Stair Pressurization Shaft Wall and Floor Penetration Detail

Materials

Concrete Steel

Elements

Beams Stairs Floors / Slabs Decks

Connections

HSS Connection

About this detail

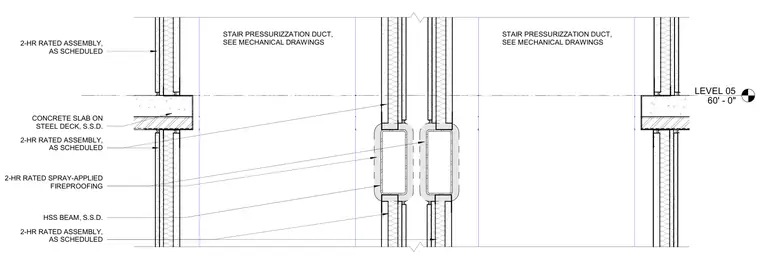

A two-hour fire-rated stair pressurization shaft assembly at Level 5, located at an elevation of 60 feet and 0 inches. The construction incorporates a concrete slab on steel deck supported by hollow structural section beams. The surrounding walls and partitions consist of two-hour rated assemblies as scheduled, protected with two-hour rated spray-applied fireproofing on the structural steel. Stair pressurization ducts pass through the shaft enclosure as coordinated with mechanical drawings.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
