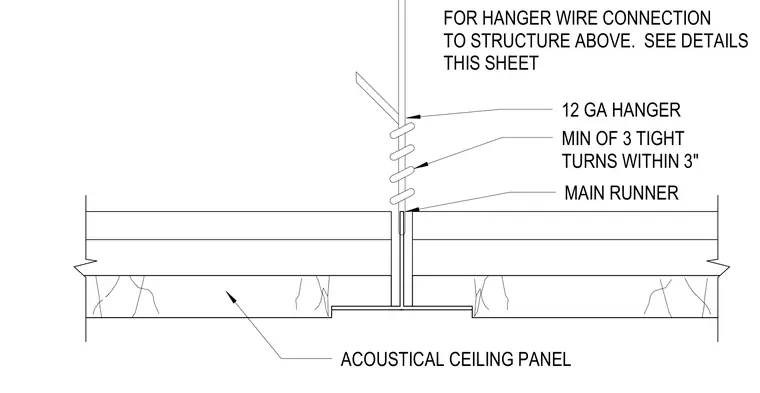

A 12 gauge hanger wire connects the overhead structure to the acoustical ceiling main runner. The wire requires a minimum of three tight turns within three inches. Acoustical ceiling panels drop into the suspended grid system.
12 GA HANGER FOR HANGER WIRE CONNECTION TO STRUCTURE ABOVE. SEE DETAILS THIS SHEET MIN OF 3 TIGHT TURNS WITHIN 3" MAIN RUNNER ACOUSTICAL CEILING PANEL
