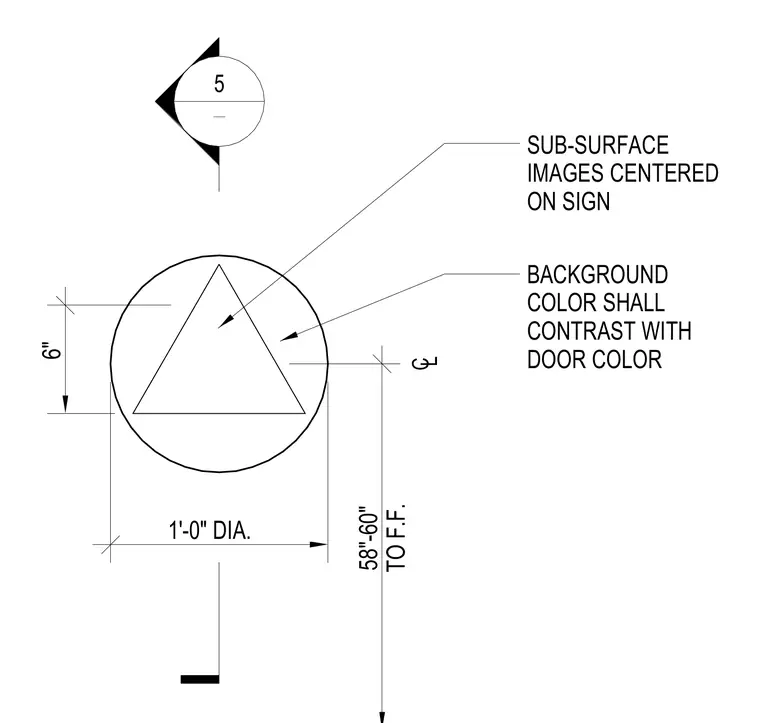

Typical circular door signage installation detail specifying a one foot diameter sign placed between fifty-eight and sixty inches to the finished floor centerline. The sign features sub-surface images centered on the face and requires a contrasting background color relative to the door.
CL 6" 1'-0" DIA. 58"-60" TO F.F. 5 - BACKGROUND COLOR SHALL CONTRAST WITH DOOR COLOR SUB-SURFACE IMAGES CENTERED ON SIGN
