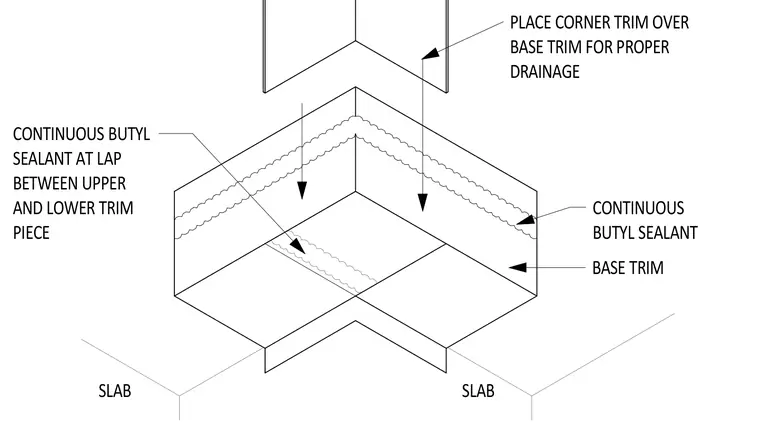

Continuous base trim is installed along the concrete slab with a continuous bead of butyl sealant. The upper corner trim piece is placed over the base trim to ensure proper drainage, sealed at the lap joint with continuous butyl sealant.
BASE TRIM CONTINUOUS BUTYL SEALANT PLACE CORNER TRIM OVER BASE TRIM FOR PROPER DRAINAGE SLAB SLAB CONTINUOUS BUTYL SEALANT AT LAP BETWEEN UPPER AND LOWER TRIM PIECE
