An eight-inch galvanized stud framing at sixteen inches on center is secured to the deck per detail 1/A9.2 and sheathed with five-eighths-inch fire-treated plywood for the full height of the parapet. A continuous twelve-gauge steel plate is provided for track fastening atop the steel structure and deck. Insulation and protection board sit below the roofing assembly where cricket insulation occurs as needed. A PVC membrane turns up the parapet with a hot-air welded manufacturer base flashing secured by a manufacturer fastener system.

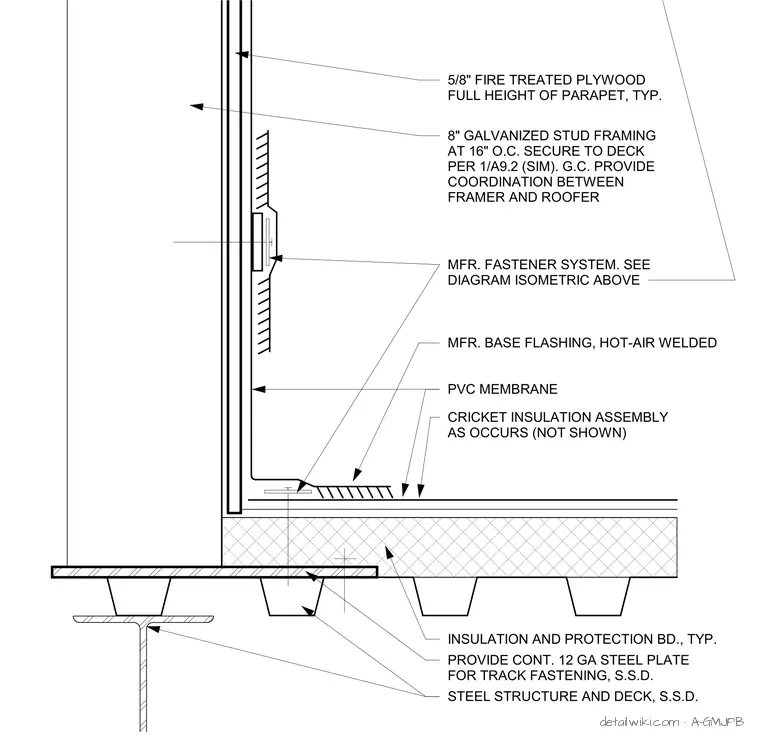

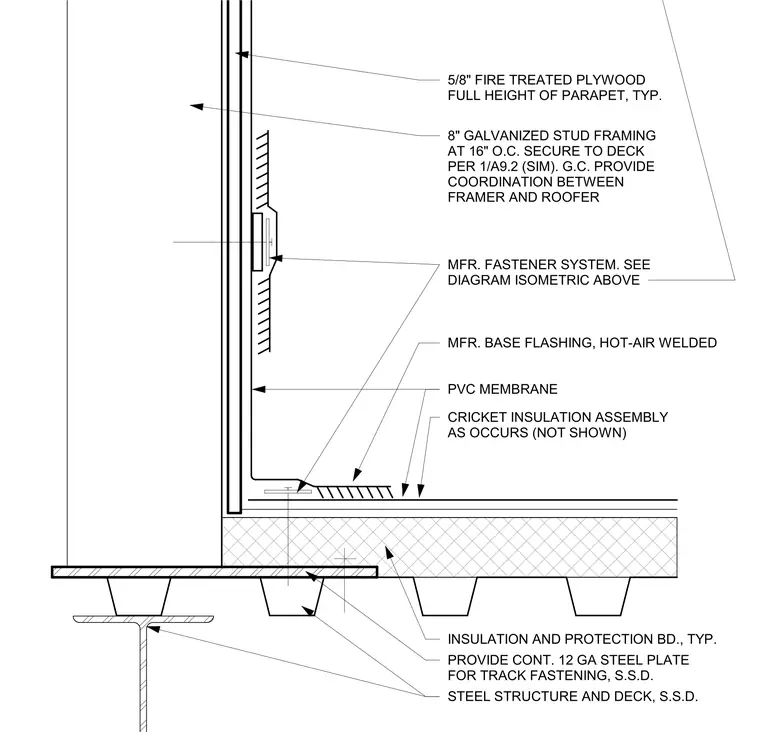

5/8" FIRE TREATED PLYWOOD FULL HEIGHT OF PARAPET, TYP. MFR. FASTENER SYSTEM. SEE DIAGRAM ISOMETRIC ABOVE MFR. BASE FLASHING, HOT-AIR WELDED PVC MEMBRANE CRICKET INSULATION ASSEMBLY AS OCCURS (NOT SHOWN) 8" GALVANIZED STUD FRAMING AT 16" O.C. SECURE TO DECK PER 1/A9.2 (SIM). G.C. PROVIDE COORDINATION BETWEEN FRAMER AND ROOFER INSULATION AND PROTECTION BD., TYP. PROVIDE CONT. 12 GA STEEL PLATE FOR TRACK FASTENING, S.S.D. STEEL STRUCTURE AND DECK, S.S.D.
