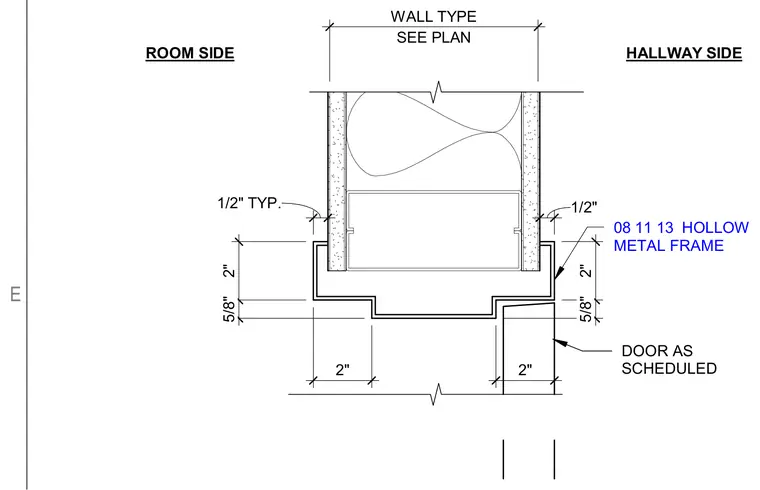

A hollow metal frame is integrated into a partition wall sized per plan, featuring gypsum board finishes on both the room side and hallway side. Dimensions indicate a half-inch typical clearance, two-inch frame depth, and five-eighths inch reveal. A door as scheduled is positioned beneath the frame head assembly.
SEE PLAN WALL TYPE DOOR AS SCHEDULED 08 11 13 HOLLOW METAL FRAME HALLWAY SIDE ROOM SIDE 1/2" TYP. 1/2" 2" 5/8" 2" 2" 2" 5/8" E
