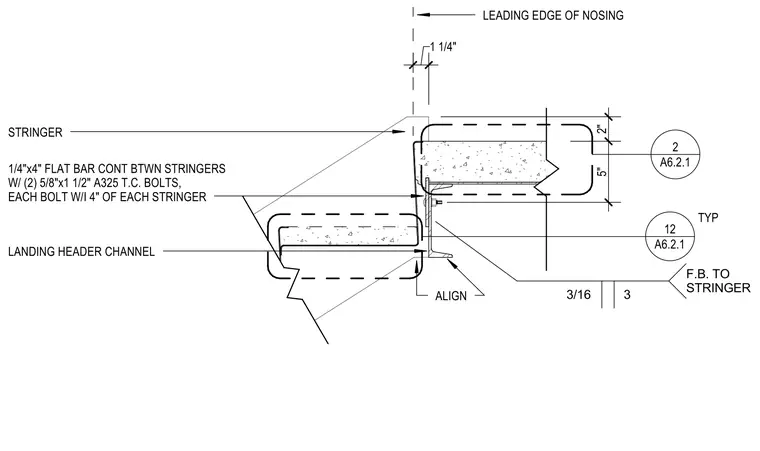

The stair stringer connects to the landing header channel using a continuous one-quarter-inch by four-inch flat bar spanning between stringers. The connection utilizes two five-eighths-inch by one-and-a-half-inch ASTM A325 tension-control bolts positioned within four inches of each stringer. A three-sixteenth-inch fillet weld with a three-inch spacing secures the flat bar to the stringer. The leading edge of the stair nosing aligns with the vertical face of the landing construction.
LEADING EDGE OF NOSING 1 1/4" 5" 2" STRINGER 1/4"x4" FLAT BAR CONT BTWN STRINGERS W/ (2) 5/8"x1 1/2" A325 T.C. BOLTS, EACH BOLT W/I 4" OF EACH STRINGER LANDING HEADER CHANNEL 3/16 3 F.B. TO STRINGER A6.2.1 12 TYP A6.2.1 2 ALIGN
